Product Description
Multifunctional Remote Controlled Agricultural Machine
多功能遥控旋耕回填除草一体机
High Efficiency · Multiple Attachments · Remote Control
高效作业 · 多种属具 · 遥控操作
Product Overview / 产品介绍
This multifunctional tracked agricultural machine is equipped with a Yuchai 1100F engine delivering 13kW of rated power. It supports multiple applications including grass shredding, rotary tillage, trenching, soil backfilling and weeding.
本设备搭载玉柴1100F发动机，额定功率13KW，集碎草、旋耕、开沟、回填、除草等多种功能于一体，可配合不同属具完成多种农业作业。
Key Features / 产品优势
13kW Yuchai Engine / 玉柴发动机： 3600r/min rated engine speed, direct shaft transmission and friction plate clutch.
Remote Operation / 遥控操作： Up to 400m remote control distance.
Electric Travel Drive / 电机行走： Dual 48V1000W drive motors.
Hydraulic Lifting / 液压升降： Remote-controlled hydraulic cylinder lifting system.
Multiple Functions / 多种功能： Flail mowing, rotary tillage, trenching, soil backfilling and weeding.
Interchangeable Attachments / 可更换属具： Supports different working configurations for various applications.
Technical Specifications / 技术参数
Engine & Power / 发动机与动力
| Specification / 参数 | Value / 数值 |
|---|---|
| Engine / 发动机 | Yuchai 1100F |
| Rated Power / 额定功率 | 13kW |
| Rated Engine Speed / 额定转速 | 3600r/min |
| Main Transmission / 主传动方式 | Direct Shaft Drive / 直联轴传动 |
| Main Clutch / 主离合方式 | Friction Plate / 摩擦片 |
| Travel Drive / 行走动力 | Electric Motor / 电机驱动 |
| Drive Motors / 驱动电机 | 48V1000W × 2 |
| Battery / 电瓶规格 | 48V23A Battery + Range Extender |
| Generator / 增程发电机 | 55V75A DC Generator |
Flail Mowing / 碎草参数
| Specification / 参数 | Value / 数值 |
|---|---|
| Flail Shaft Speed / 碎草刀轴转速 | 2600r/min |
| Flail Blades / 碎草刀片 | 48 Tooth Blades (16 Groups of 3) |
| Cutting Width / 碎草工作宽度 | 800mm |
| Stubble Height / 留茬高度 | 20–80mm |
| Grass Height / 碎草高度 | 50–2000mm |
Rotary Tillage / 旋耕参数
| Specification / 参数 | Value / 数值 |
|---|---|
| Tillage Shaft Speed / 旋耕刀轴转速 | 360r/min |
| Rotary Blades / 旋耕刀片数量 | 24 |
| Tillage Width / 旋耕宽幅 | 900mm |
| Tillage Depth / 旋耕深度 | 130–250mm |
Trenching / 开沟参数
| Specification / 参数 | Value / 数值 |
|---|---|
| Trenching Blades / 开沟刀片数 | 10 |
| Trenching Width / 开沟宽度 | 260mm |
| Trenching Depth / 开沟深度 | 200–300mm |
Machine Specifications / 整机参数
| Specification / 参数 | Value / 数值 |
|---|---|
| Dimensions / 整机尺寸 | 1780 × 920 × 740mm |
| Weight / 整机重量 | 500kg |
| Remote Distance / 遥控距离 | 400m |
| Lifting / 升降方式 | Remote Hydraulic Cylinder / 遥控液压缸 |
| Travel Speed / 行走速度 | 35–50m/min |
| Fuel Consumption / 油耗 | 1.5L/h |
| Fuel Tank / 油箱容量 | 5.5L |
Applications / 适用场景
Agricultural Land Preparation / 农田整地
Grass and Vegetation Management / 草地及植被管理
Orchard Maintenance / 果园维护
Trenching and Soil Backfilling / 开沟与土壤回填
Rotary Tillage and Weeding / 旋耕及除草
Contact Us / 联系我们
Contact us for product details, attachment options and quotations.
欢迎联系我们获取产品详情、属具配置及报价。

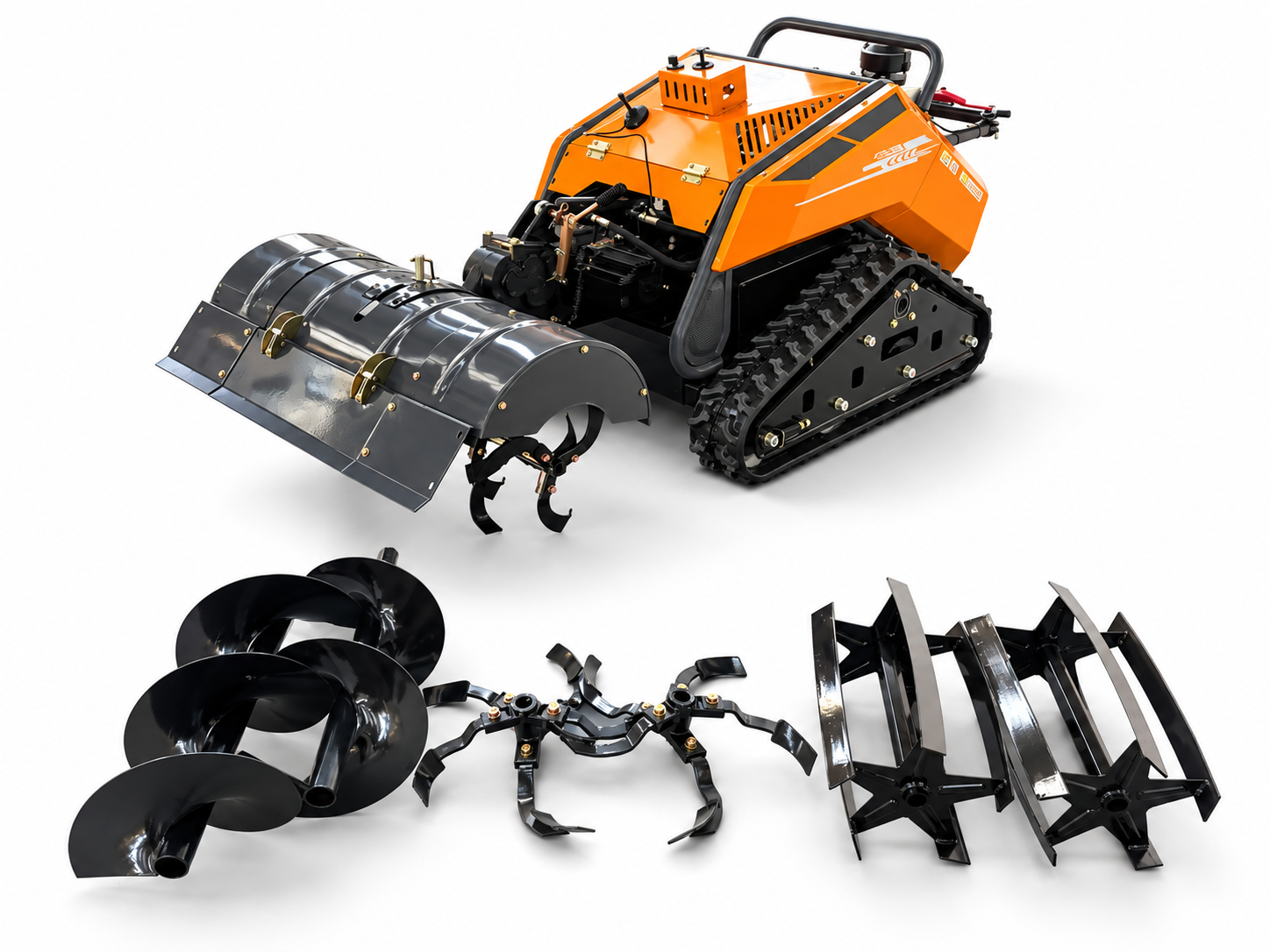

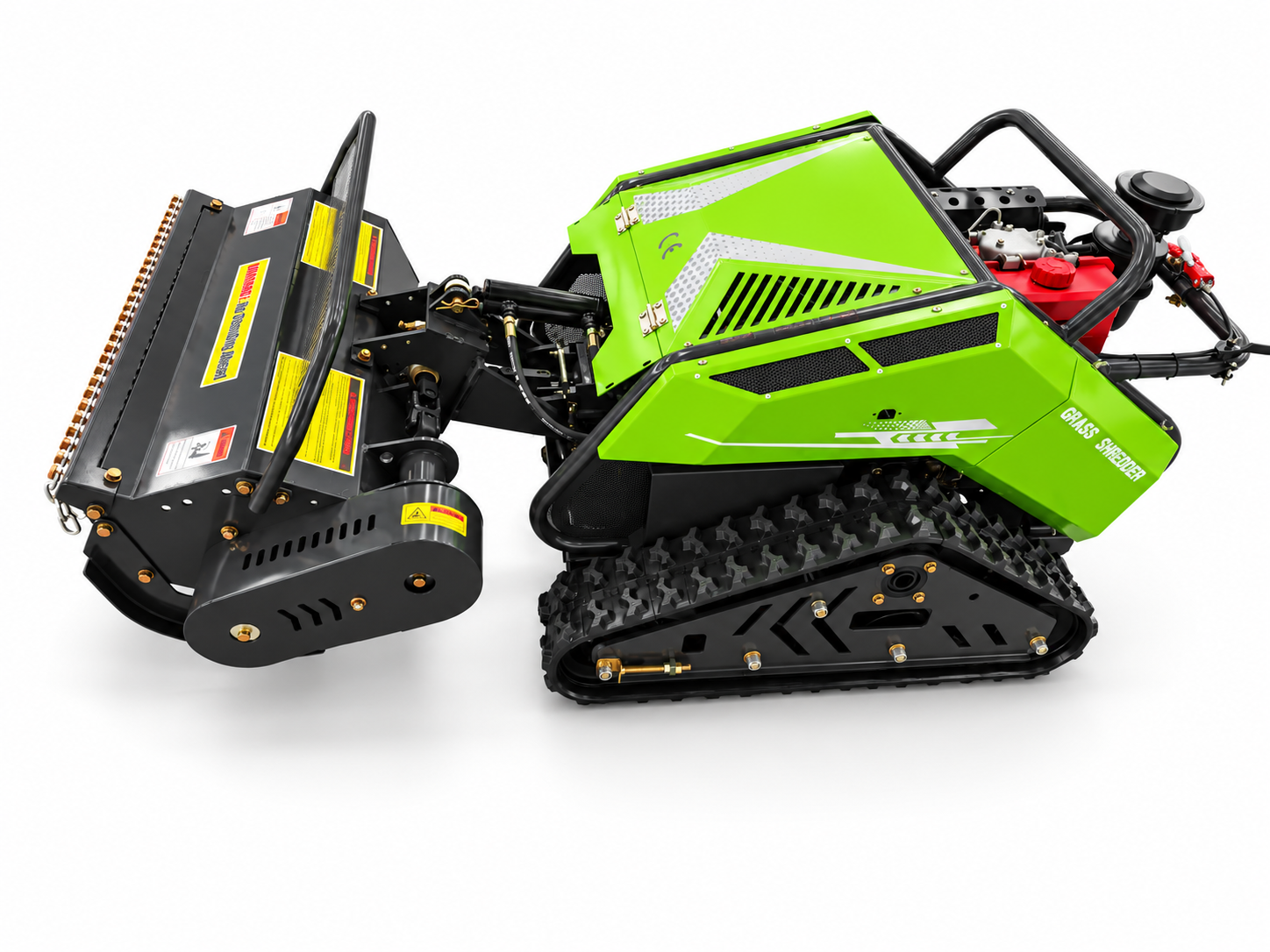

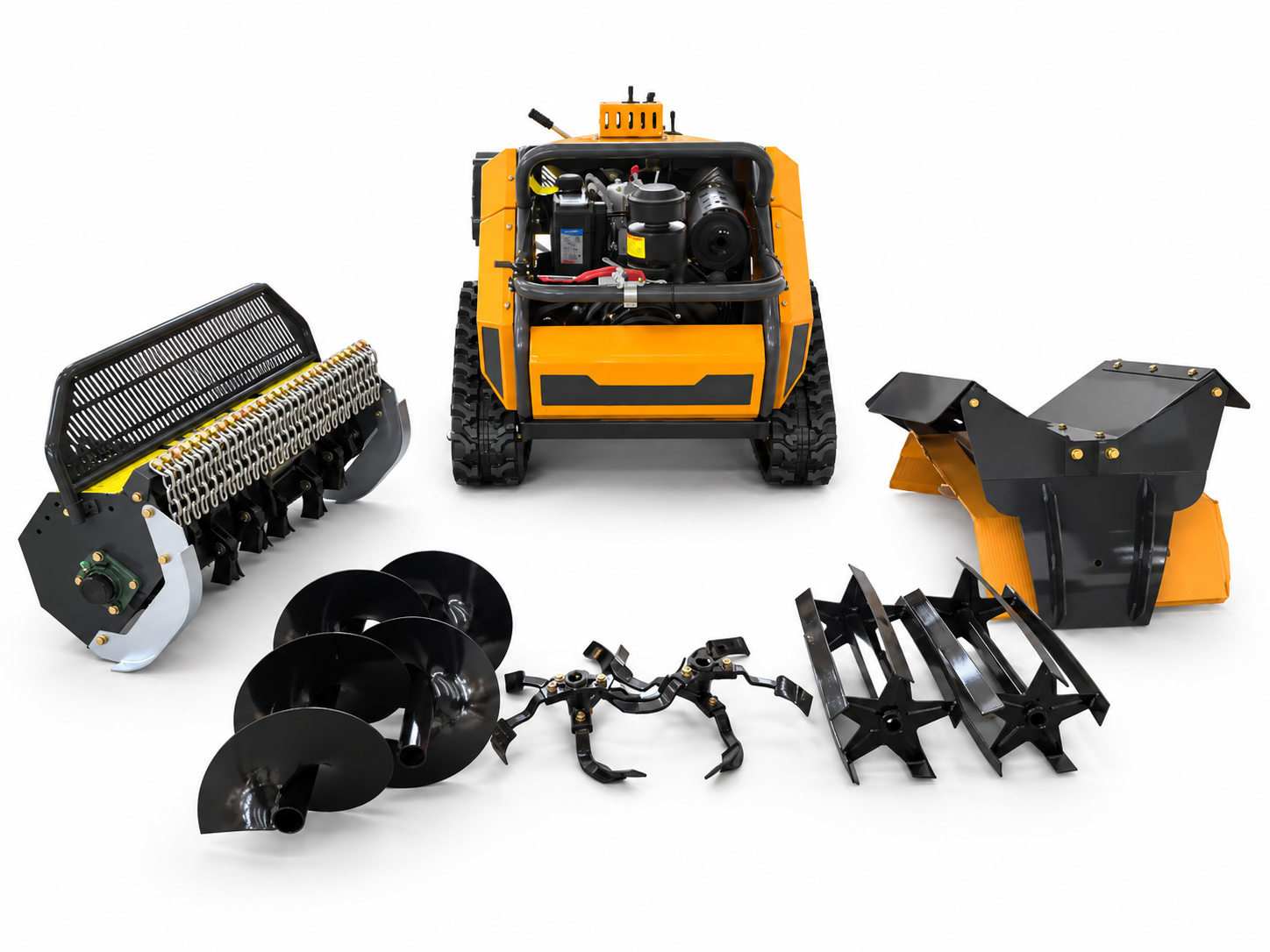

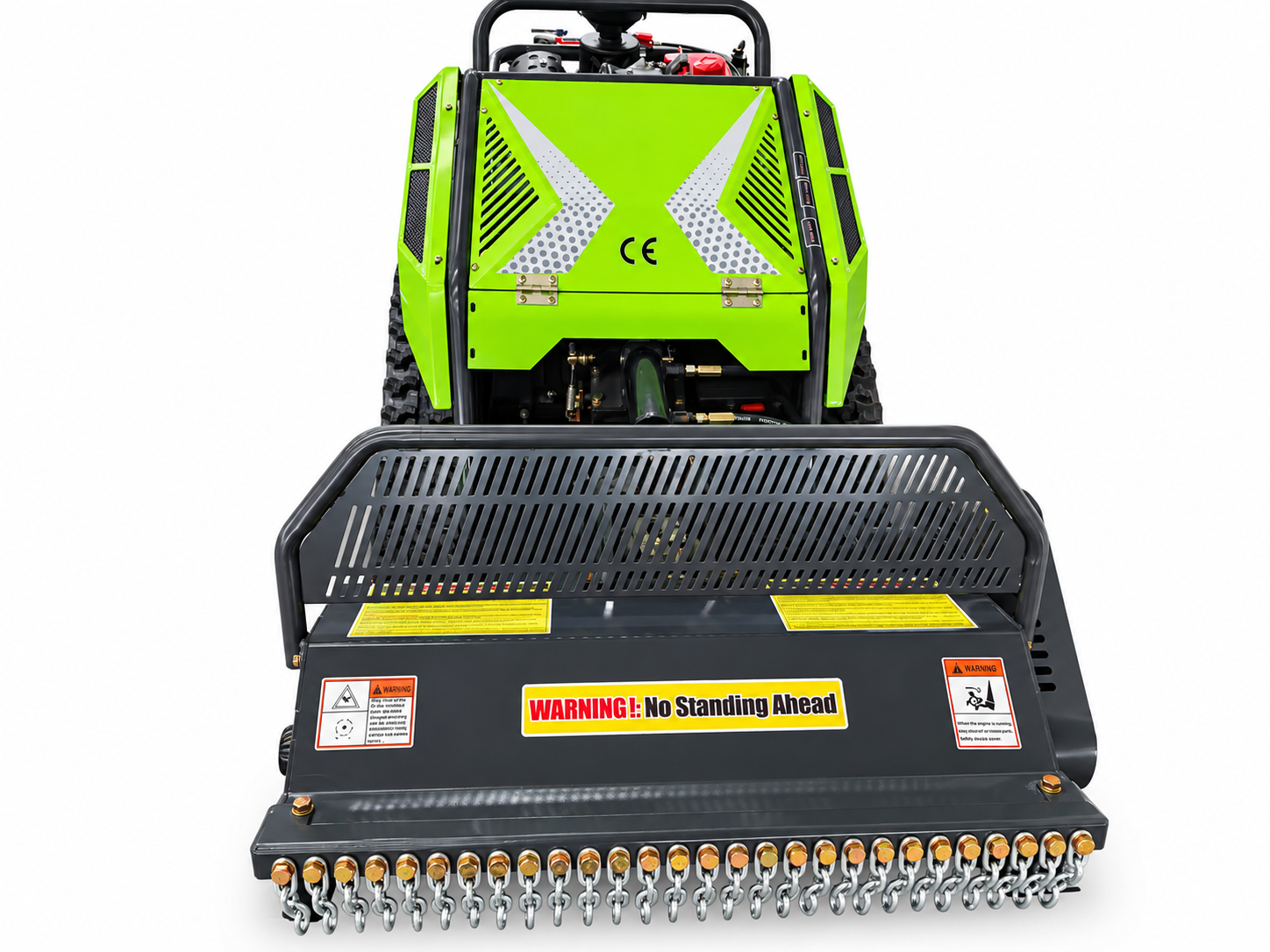

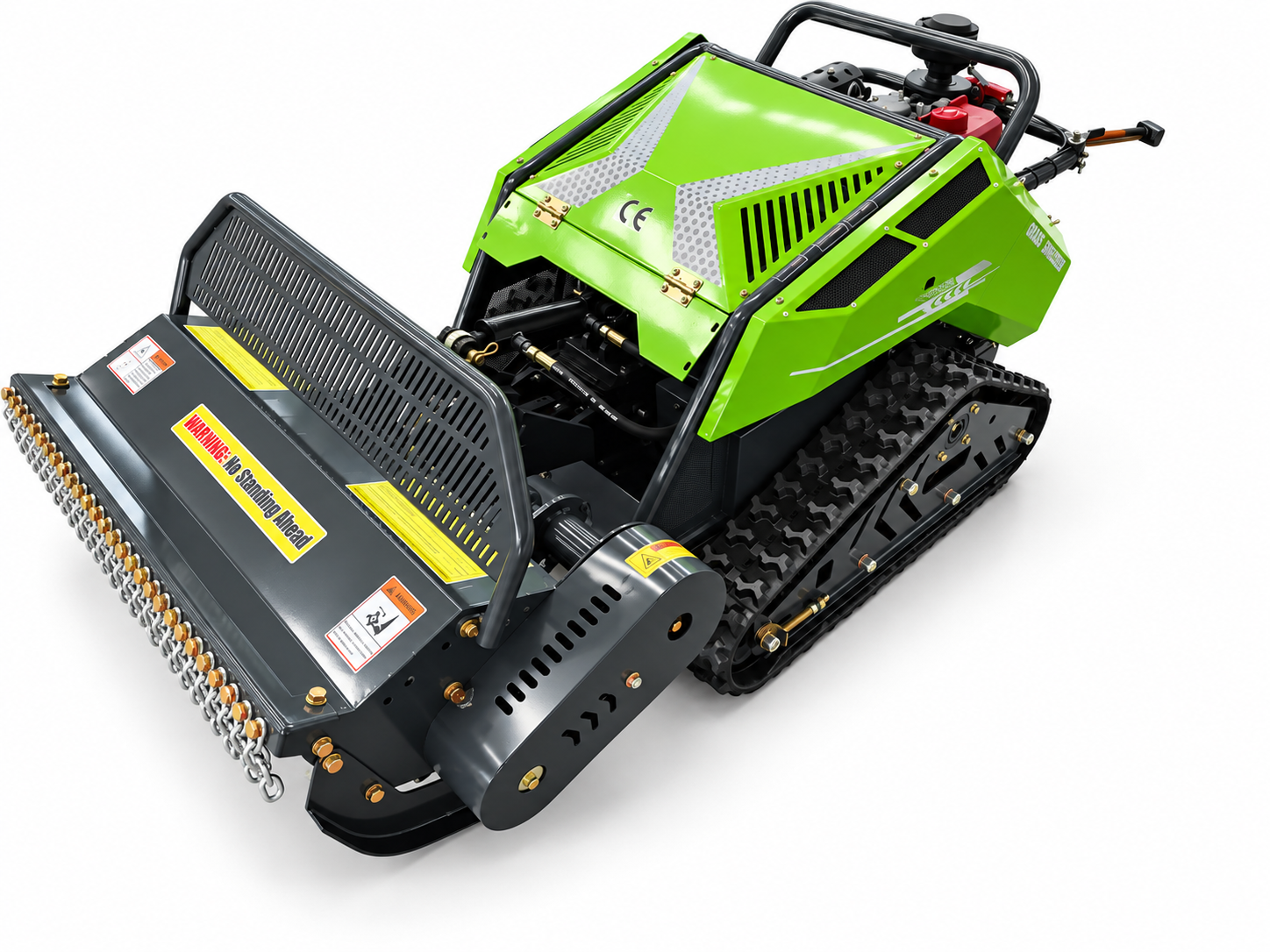

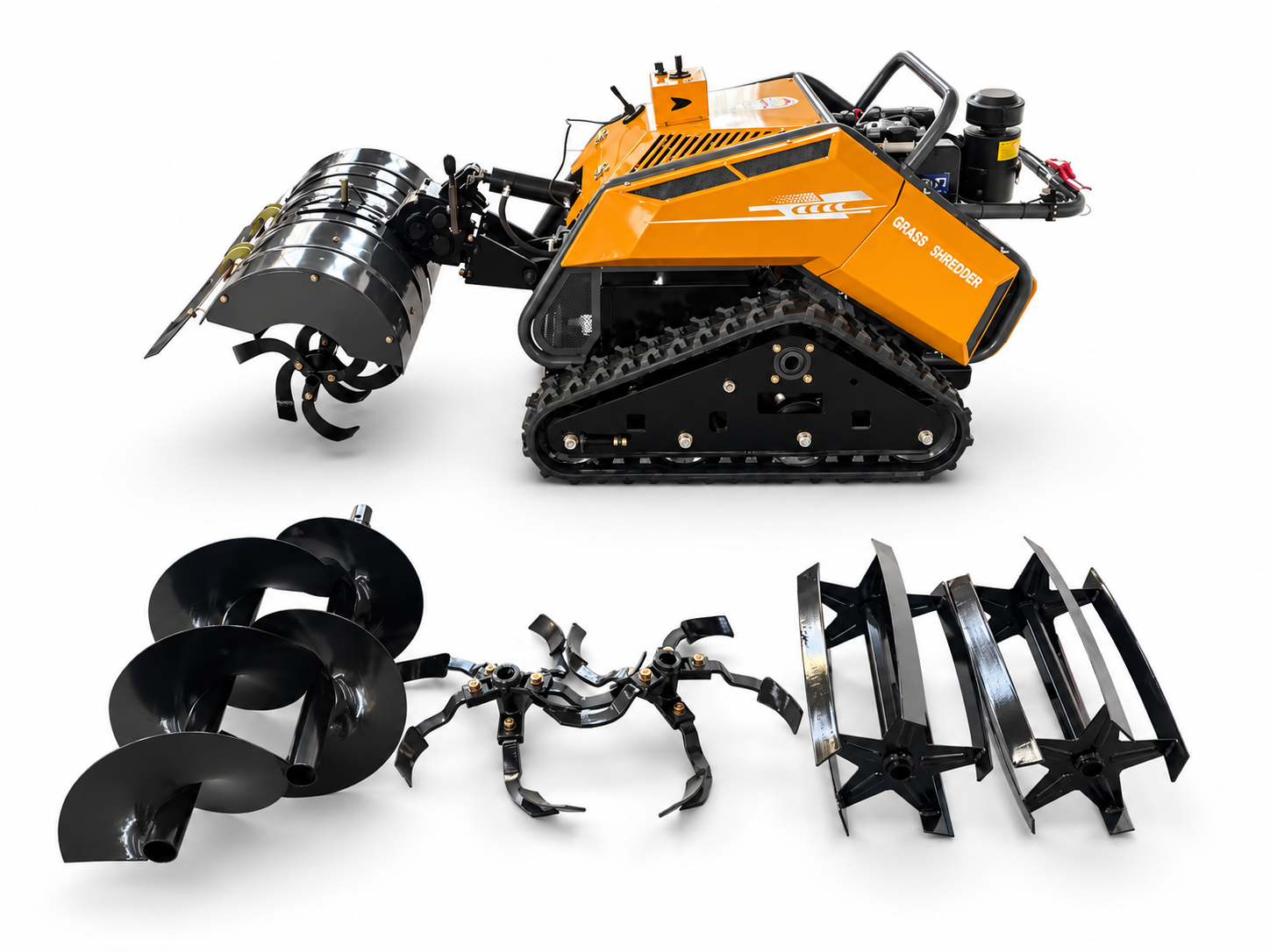

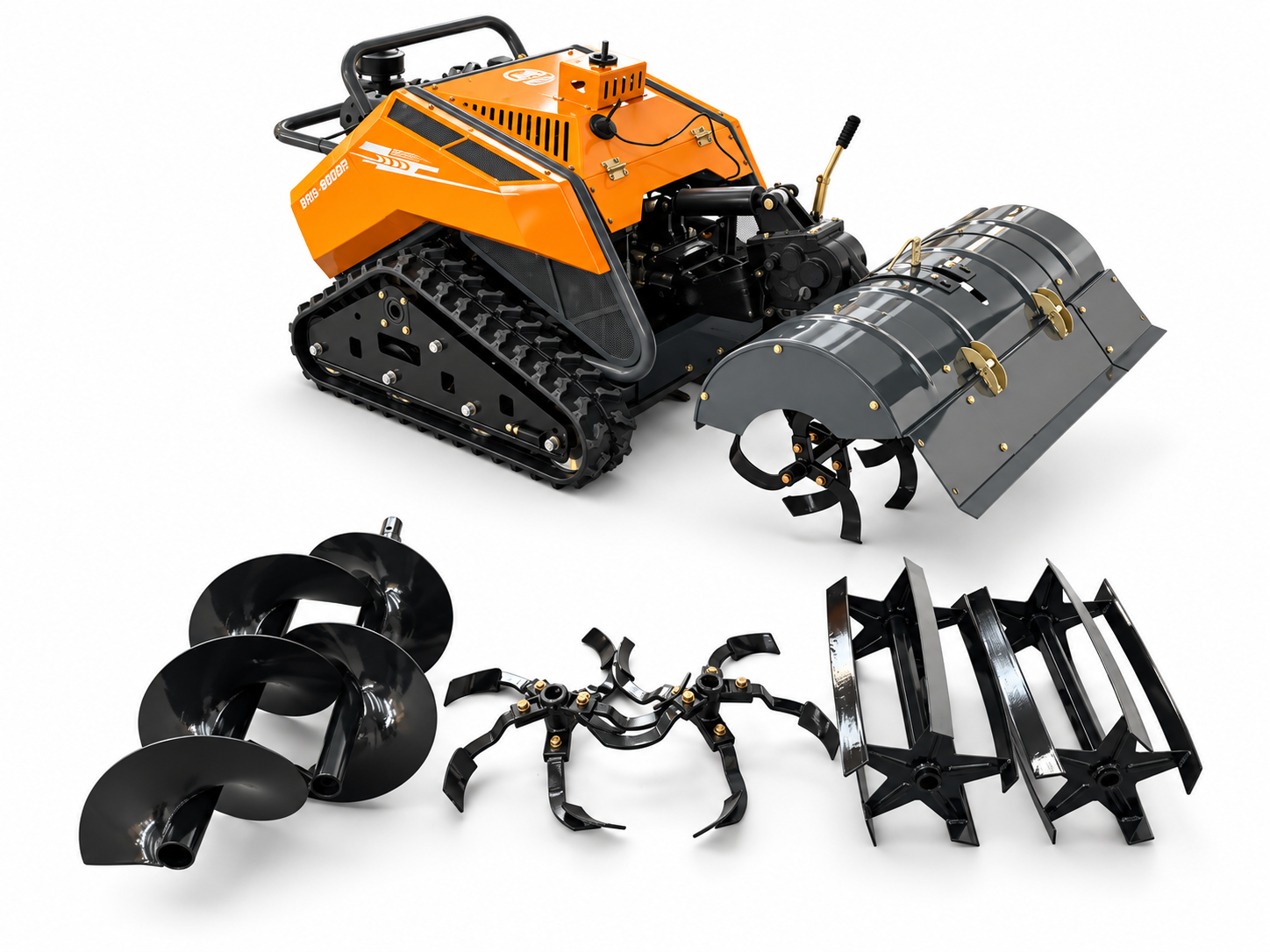

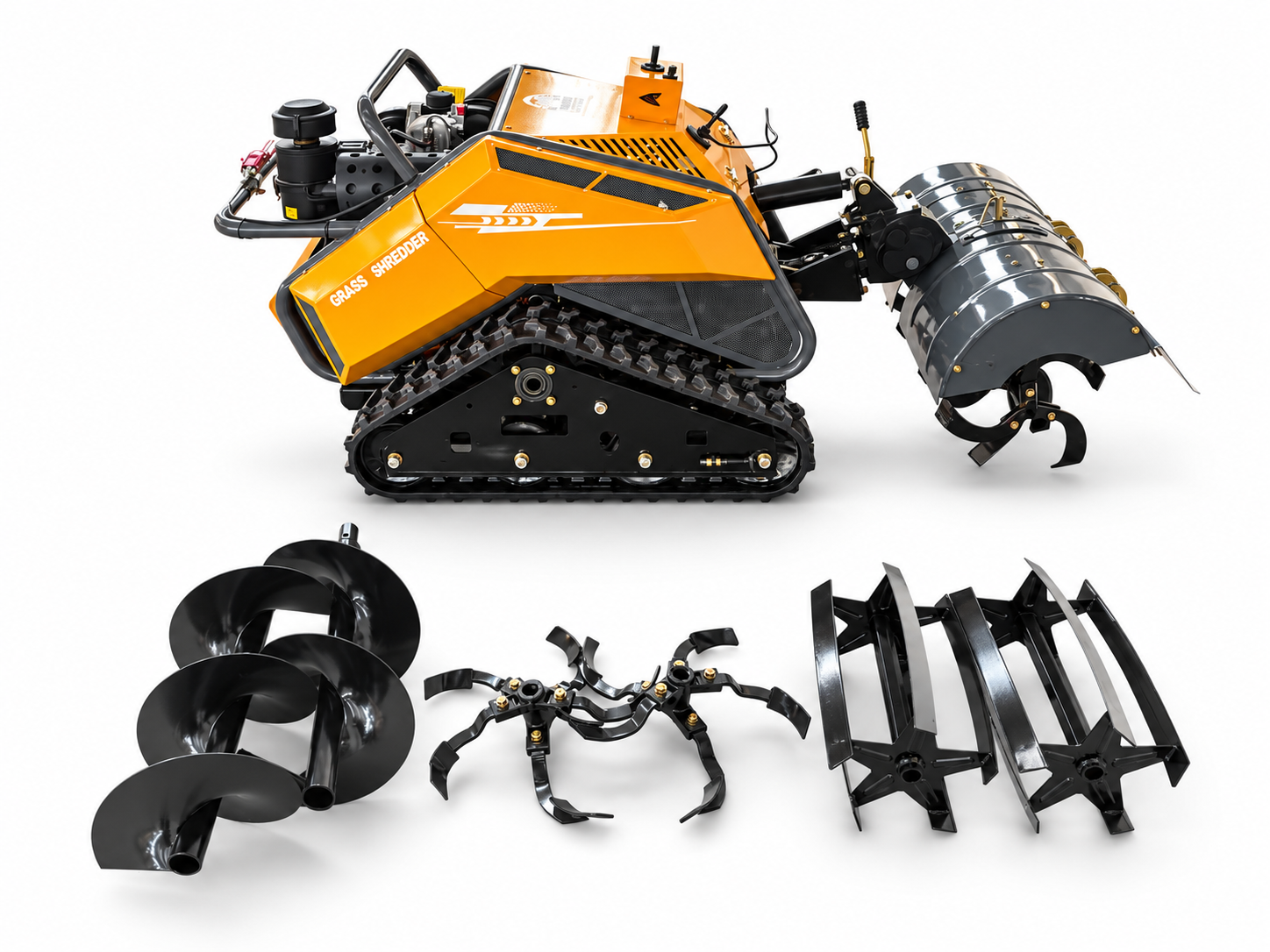

XT-1100Remote Controlled Multifunctional Flail Mower & Rotary Tiller
Multifunctional remote-controlled tracked agricultural machine powered by a Yuchai 1100F 13kW engine. Supports flail mowing, rotary tillage, trenching, backfilling and weeding. Features 800mm flail cutting width, 900mm rotary tillage width, hydraulic lifting and up to 400m remote control distance. Ideal for agricultural and land maintenance applications.
